Crenova MS8233D Auto Ranging Digital Multimeter Home Measuring Tools
Crenova MS8233D Multimeter is an Auto Ranging Digital Multimeter UPC:733520898351
Information
Bullet Point

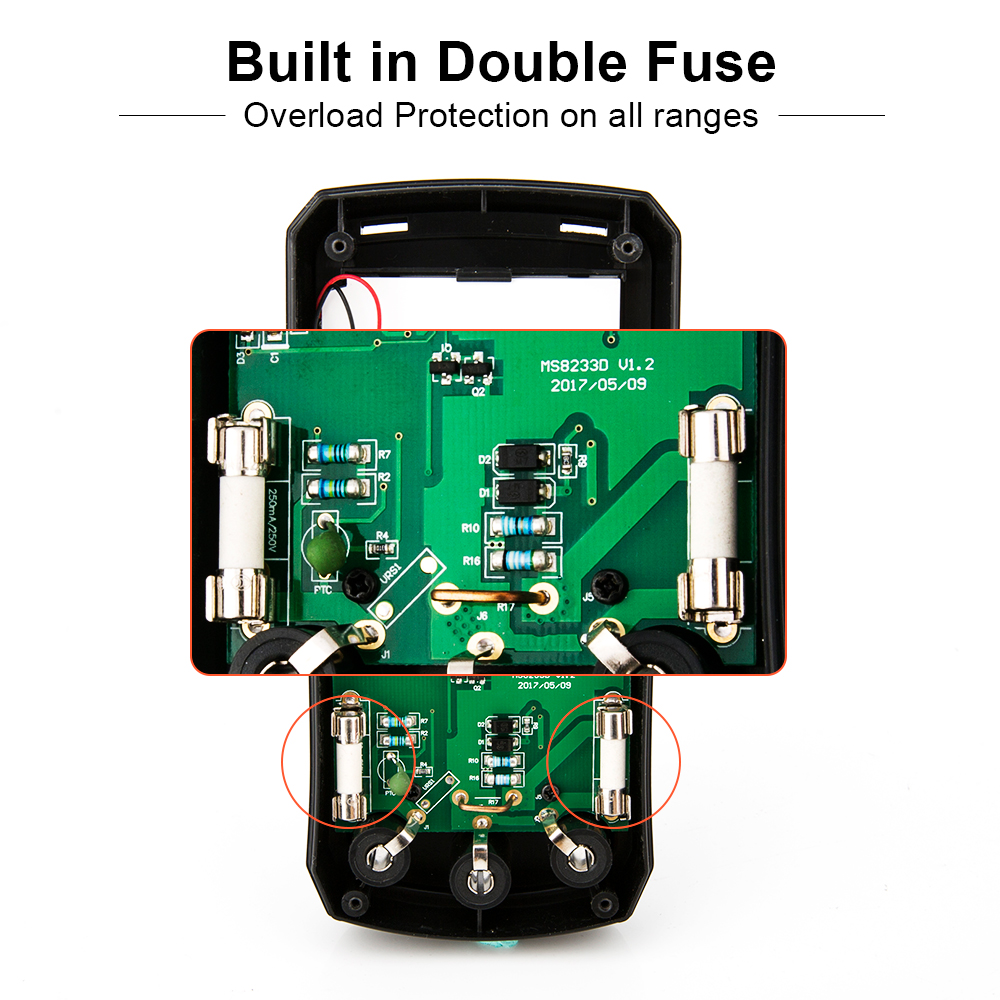

【100% Safety Assurance】Built in Double Fuse. Overload Protection on all ranges.
【Auto-ranging Tester】Accurately measure AC/DC voltage, AC/DC current, resistance, frequency, continuity, diode, etc.
【Backlight Display】 Designed with 3 1/2 digit LCD display and 'Backlight', showing the reading clearly in low light areas.

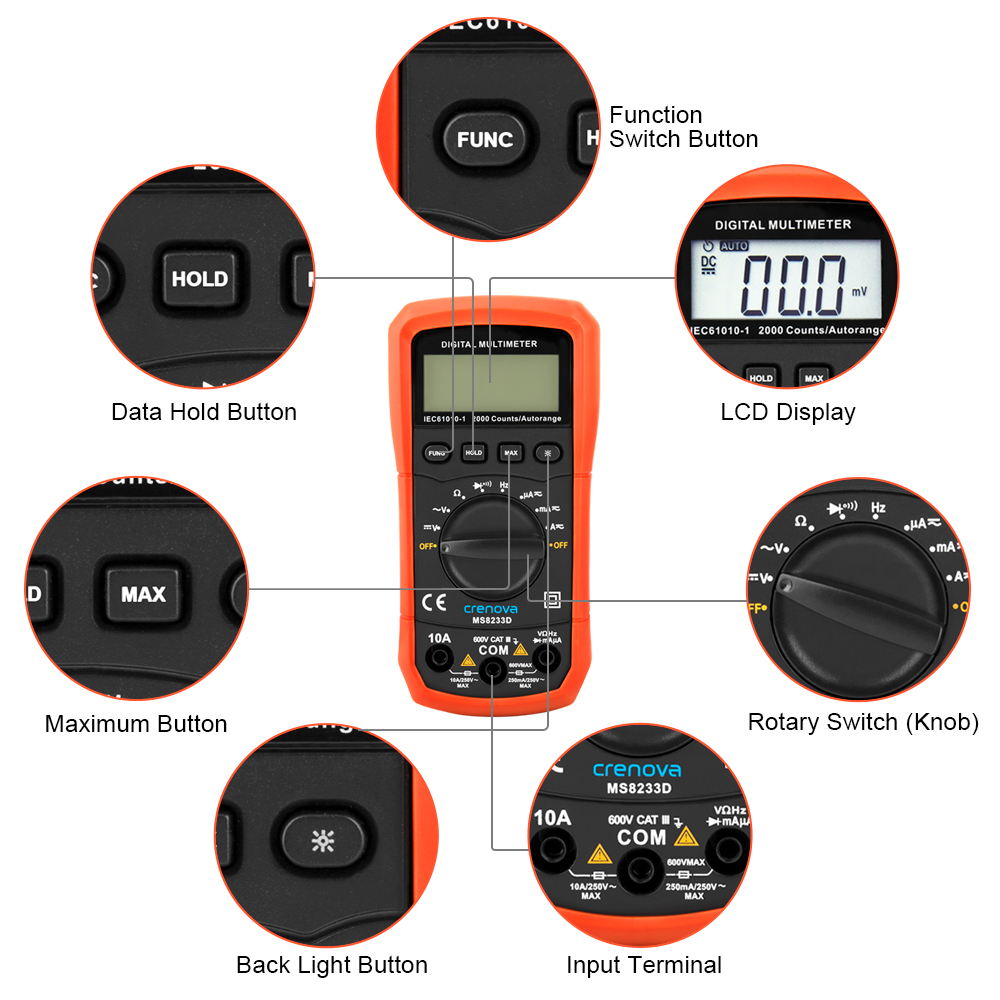

【Special Points】 Data Hold, Maximum Value Hold, Function Switching, Auto Power OFF. Sampling Speed: 3 times per second.

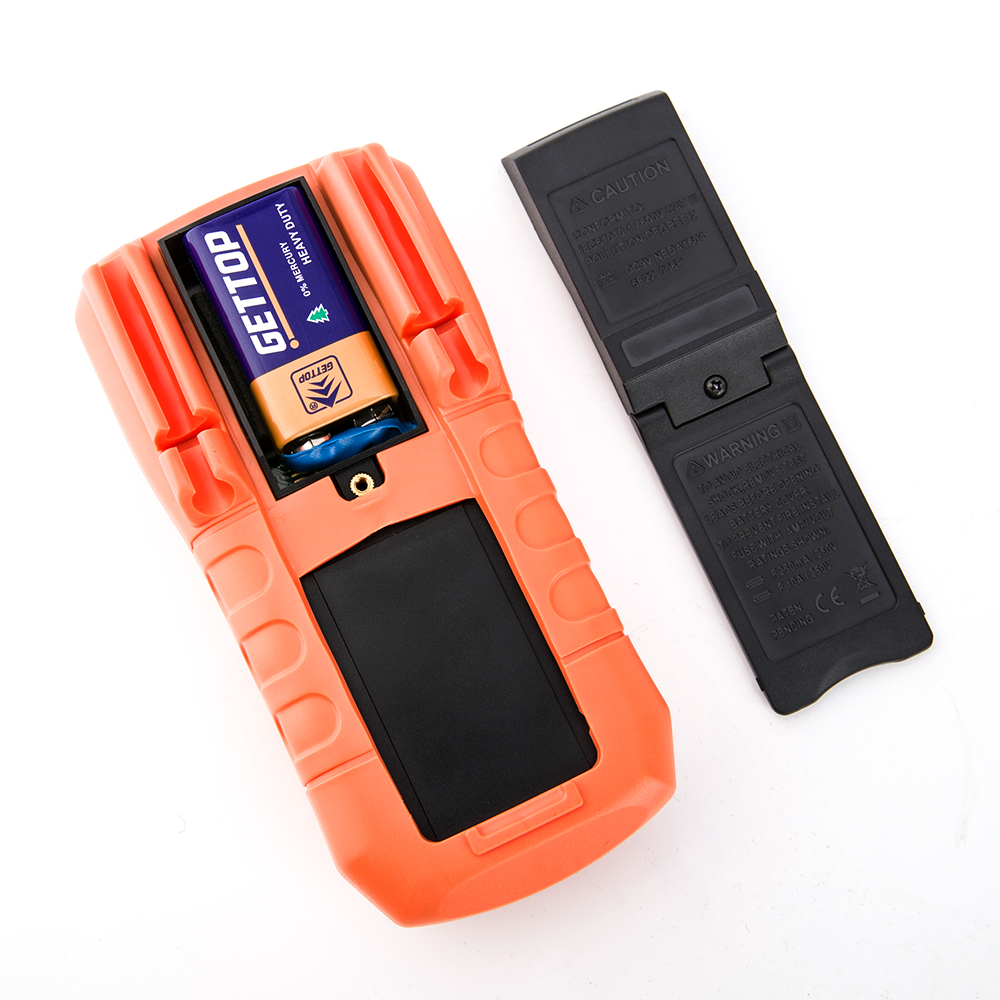

【9V Battery】DON'T forget to install the 9V battery before using the digital multimeter, or it will go on strike.

Product Description

Crenova MS8233D Multimeter is a handheld and battery operated digital multimeter with multi function. This Multimeter is designed to meet IEC610101 & CAT II 600V over voltage category and double insulation. The convenient auto ranging operation allows you to select the right measurement range when working on a variety of components. As general measurement tool, the Digital Multimeter is widely used in the home, school, laboratory, factory and other social field.

Specifications

1.DC Voltage: *200mV/2V/20V/200V ±(0.5%+2) *600V ±(0.8%+2)
2.AC Voltage: *2V/20V/200V ±(0.9%+3) *600V ±(1.2%+3)
3.DC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+3)
4.AC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+4)
5.Resistance: *200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2) *2MΩ/20MΩ ±(1.0%+2)
6.Frequency: *20kHz ±(1.5%+5)
7.Power Supply: 9V Battery (6F22 or 1604A Type)
8.Safety Class: IEC 610101, CAT II 600V.

Package

*1 x Crenova MS8233D Digital Multimeter

*2 x Test Lead

*1 x User Manual


FAQs

1    Q    What batteries does it use

A    9V battery, you need to install it before using the multimeter.

2    Q    Does it have 1 or 2 or no fuses?

A    Built-in Double Fuse. Overload Protection on all ranges.

3    Q    I need an ohm meter with less than 10 ma output in 100 ohm range. Will   this fit the bill?

A
    This meter will work well, the maximum current mine put out is   .130mA(130uA). Also, this will be good for testing solid state electronics,   as it uses about .22V for resistance measurement.

4    Q    Is this to check car battery?

A    Yes you can use it for that. Set it to DC volts.

5    Q    What's the resistance range accurracy?

A    The resistance range are: 200.0Ω, 2.000KΩ,20.00KΩ, 200.0KΩ ,   2.000MΩ.20.00MΩ.
