Crenova MS8233D Auto Ranging Digital Multimeter Home Measuring Tools
Crenova MS8233D Multimeter is an Auto Ranging Digital Multimeter UPC:733520898351
Bullet Point

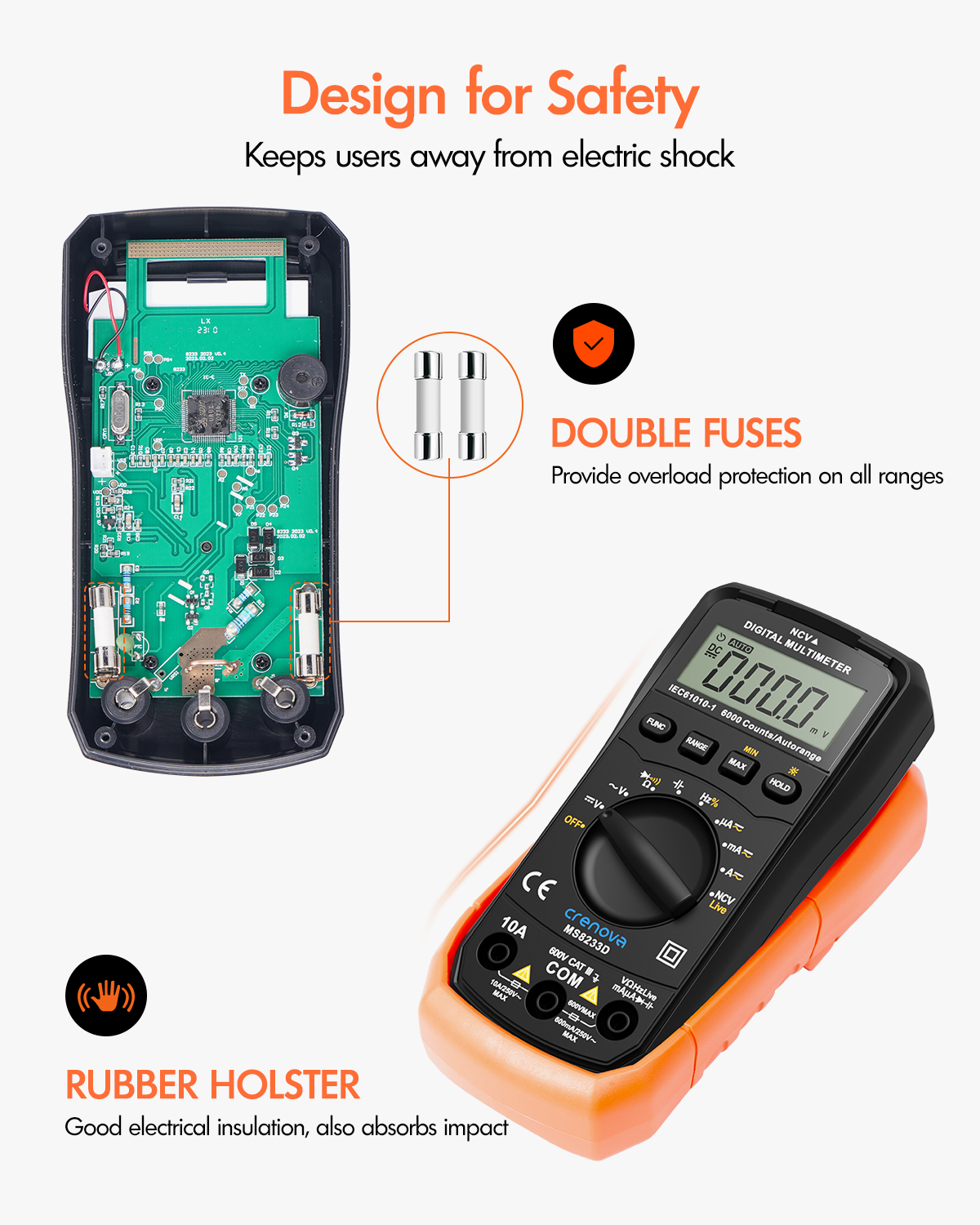

【User and Device Protection】Two built-in fuses provide overload protection on all ranges to keep safe. Insulated rubber holster prevents the user from electric shock, and also provides full protection.

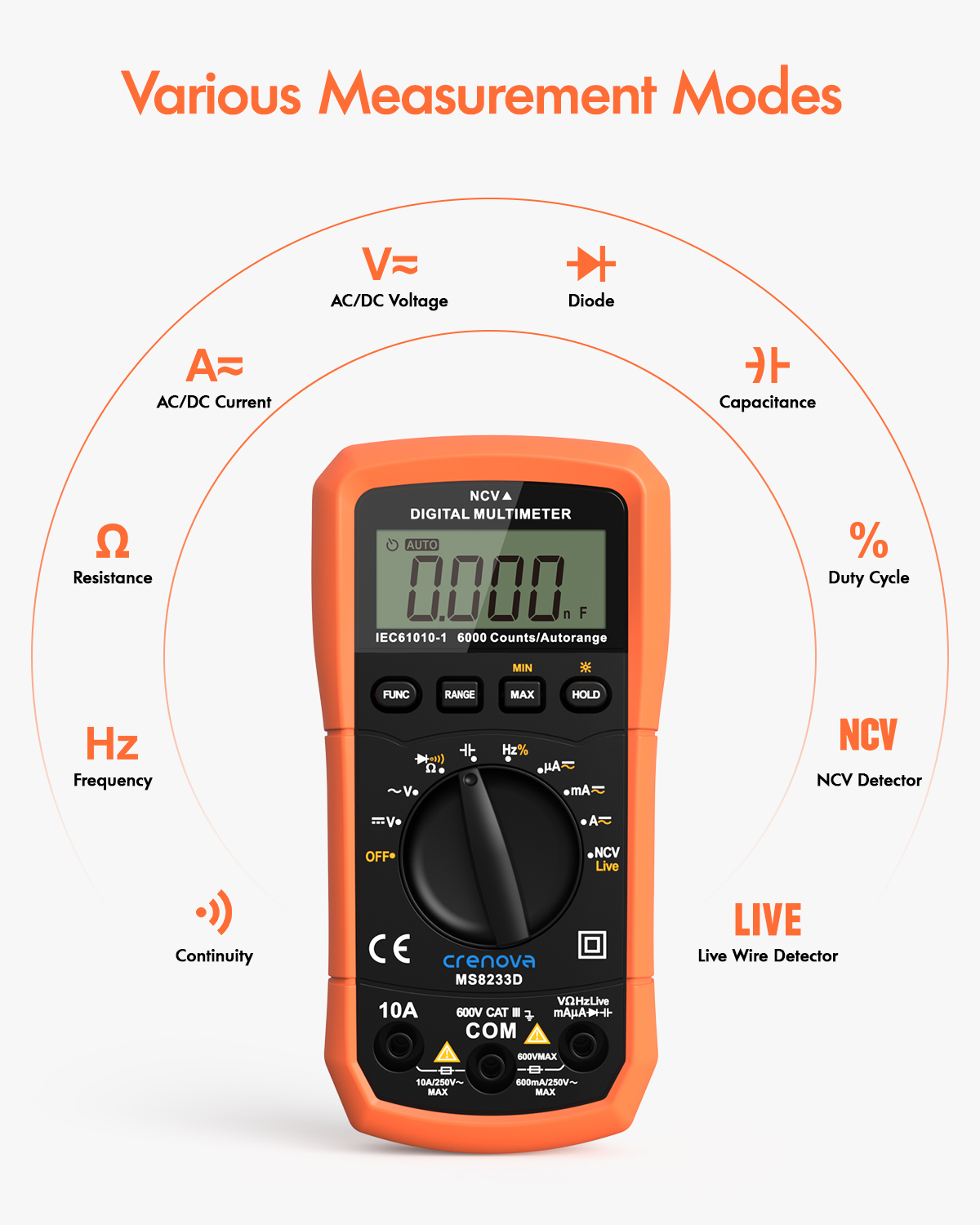

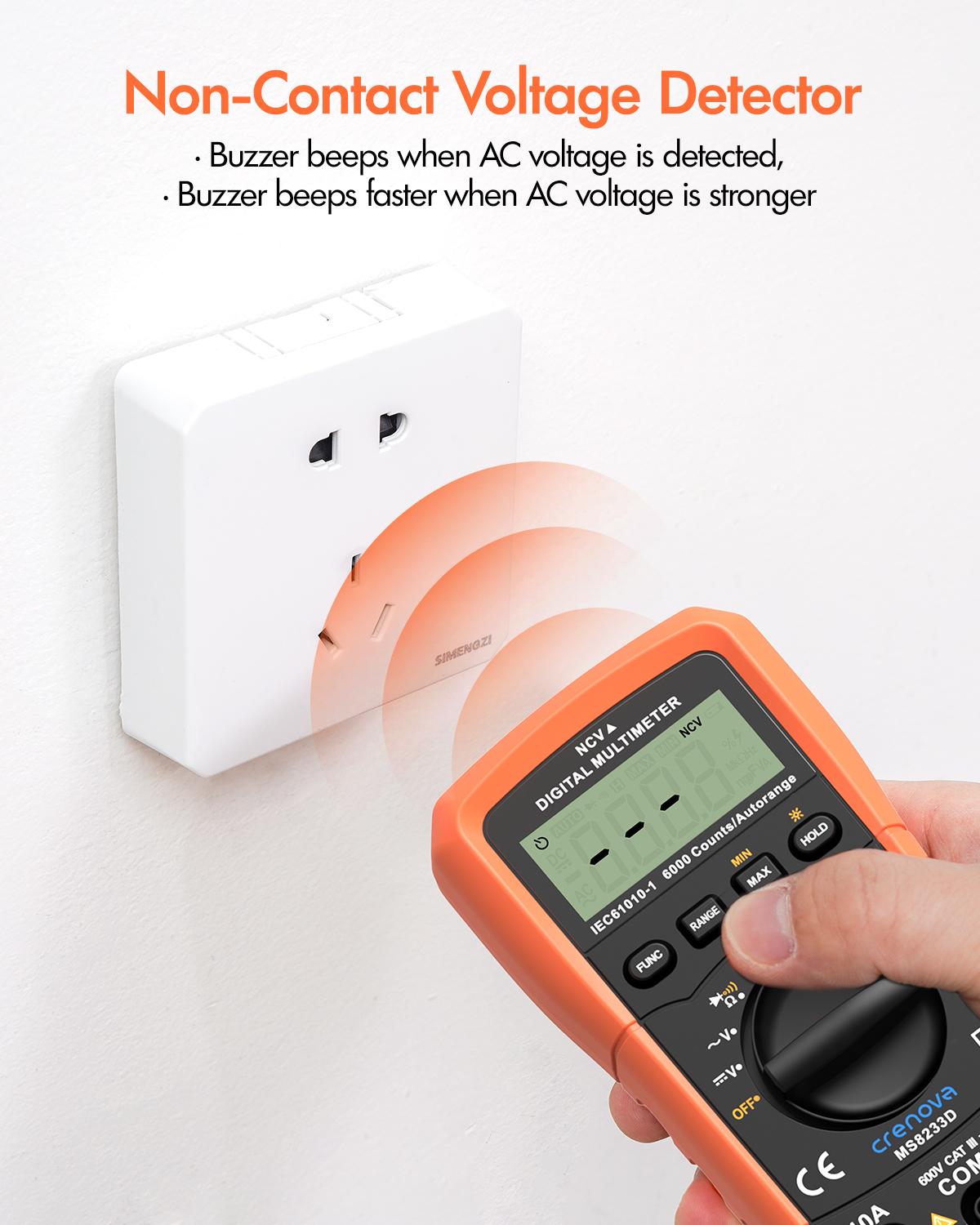

【More Versatile than Expected】The multimeter can measure DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and duty cycle, test continuity and diode, and detect live wire and NCV.

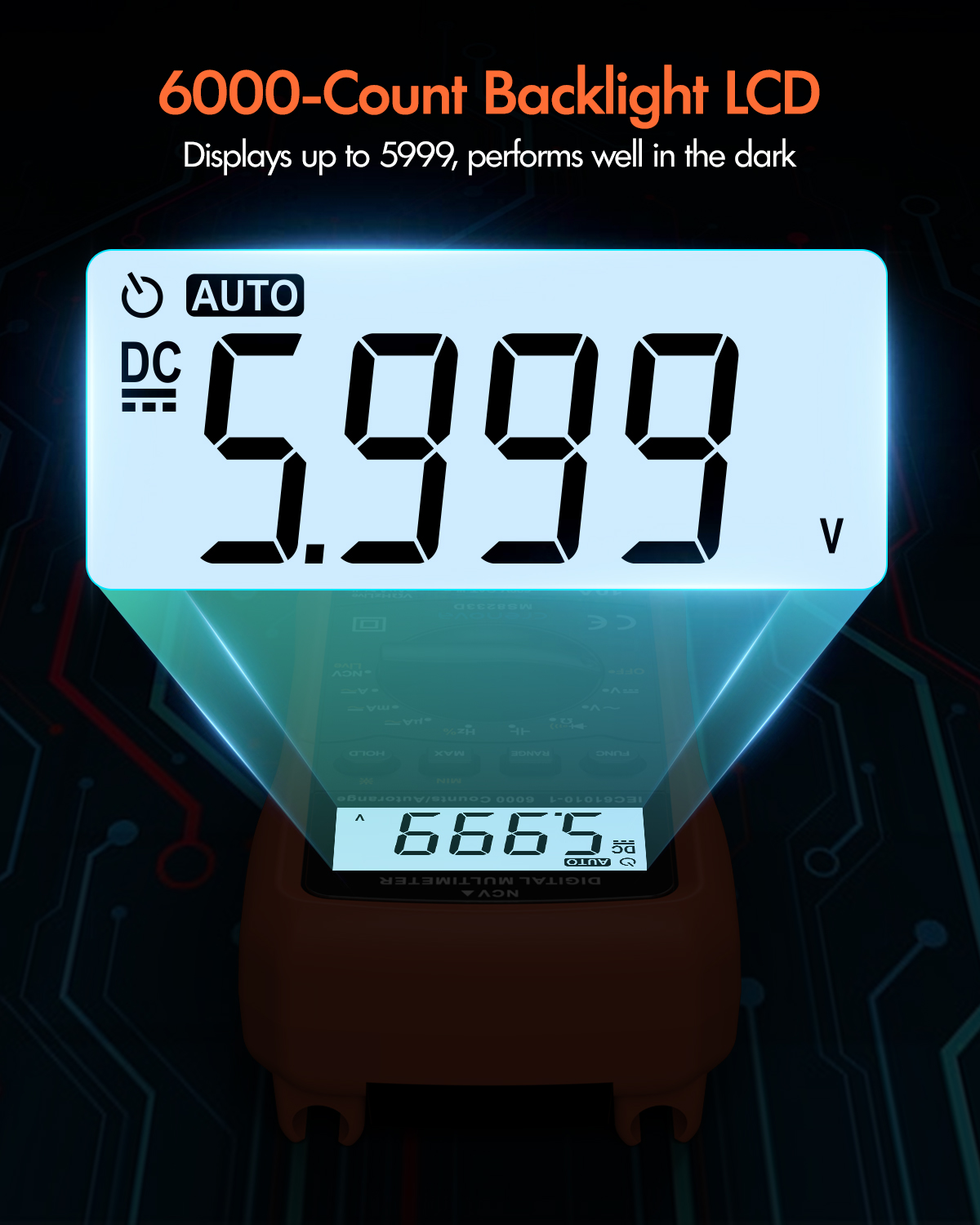

【6000-Count LCD Screen】Equipped with a 6000-count LCD display, it gives clear and accurate readings. Bright backlight allows for working in the dark places. The multimeter has a sampling speed of 3 times per second.

【More Powerful Features】MS8233D multimeter features practical functions, such as switchable manual/auto range modes, max/min value, data hold, low battery indicator, and auto power off.

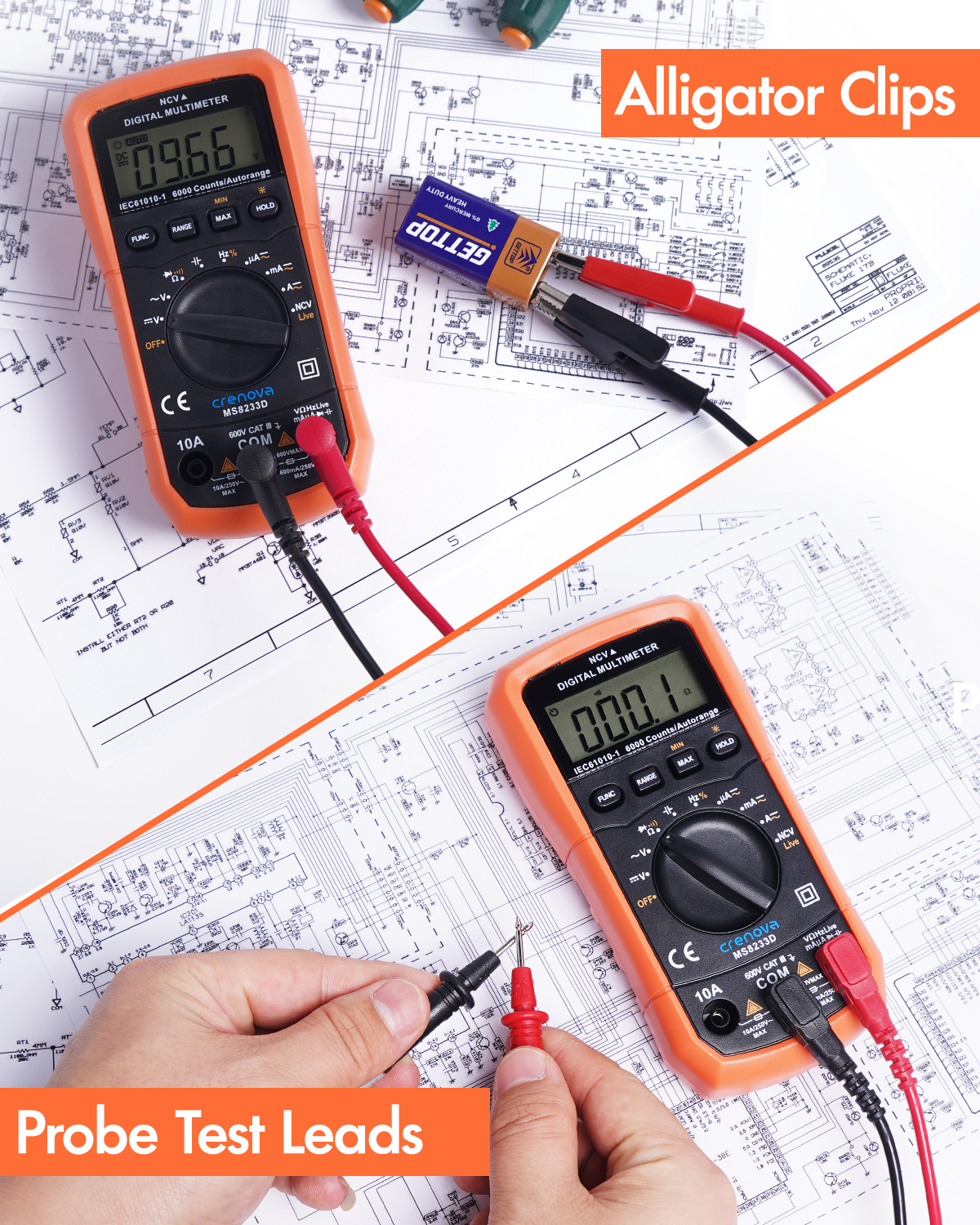

【All-in-One Set】It also comes with 1 pair of probe test leads, 1 pair of alligator clips, 2 AAA batteries (1.5V each), 1 carrying box and 1 user manual to make it perfect for home, school, lab and factory use.

Product Description

Crenova MS8233D is a reliable multi-function digital multimeter for safe, easy and fast electrical measurements. This high-performance handheld multimeter is equipped with a 6000-count LCD display to give clear and accurate readings. It is expert in measuring DC/AC voltage, DC/AC current, resistance, capacitance, frequency, duty circle, testing diode and continuity, and tracing live wires. MS8233D also comes with advanced features, such as auto power o, NCV (Non-Contact Voltage) detector, backlight, data hold, and more practical measuring modes and functions. It is an ideal tool for laboratory, school, factory, and home use.


1.DC Voltage: *200mV/2V/20V/200V ±(0.5%+2) *600V ±(0.8%+2)
2.AC Voltage: *2V/20V/200V ±(0.9%+3) *600V ±(1.2%+3)
3.DC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+3)
4.AC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+4)
5.Resistance: *200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2) *2MΩ/20MΩ ±(1.0%+2)
6.Frequency: *20kHz ±(1.5%+5)

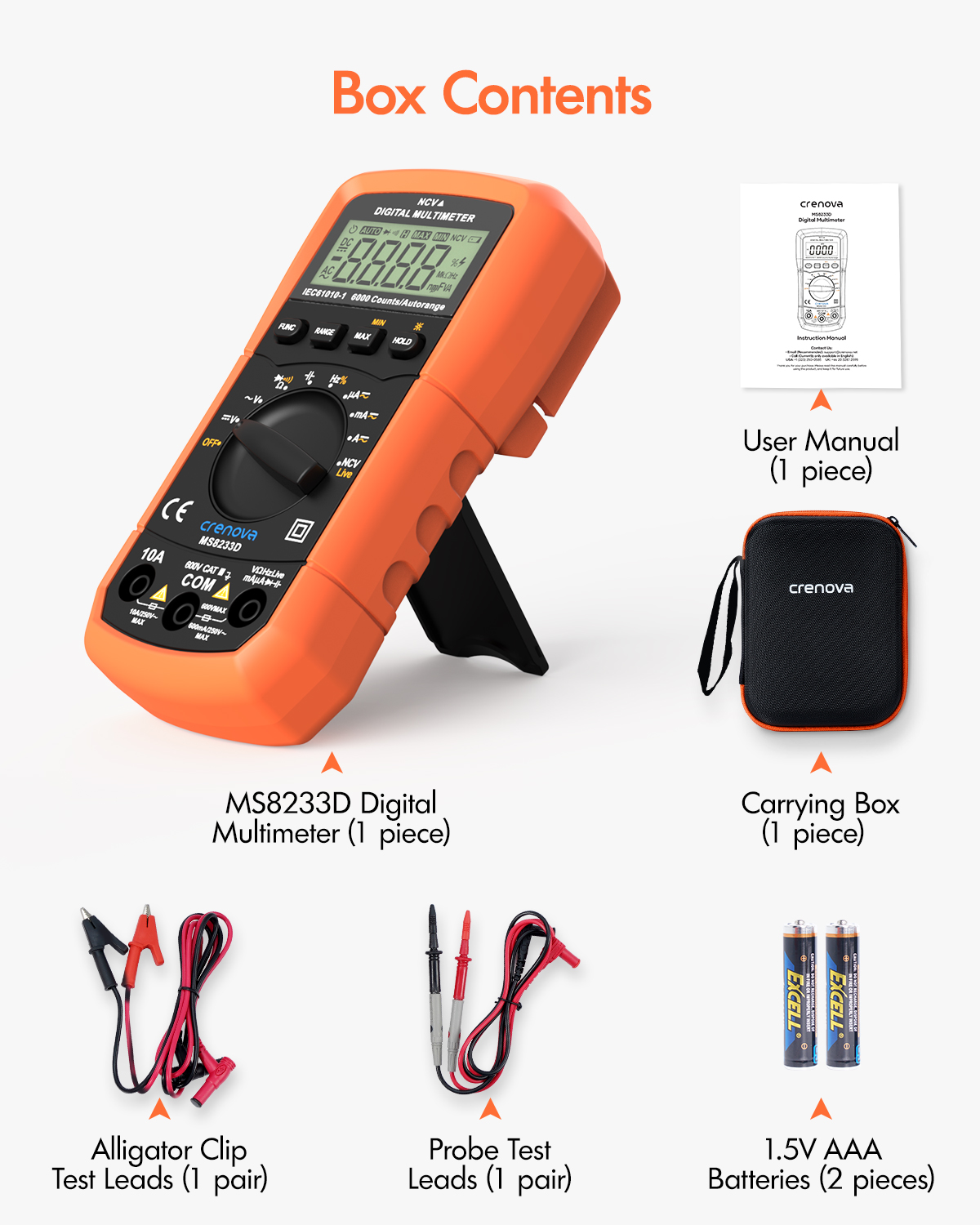

1 MS8233D multimeter

1 pair of probe test leads

1 pair of alligator clips

2 AAA batteries (1.5V each)

1 carrying box

1 user manual

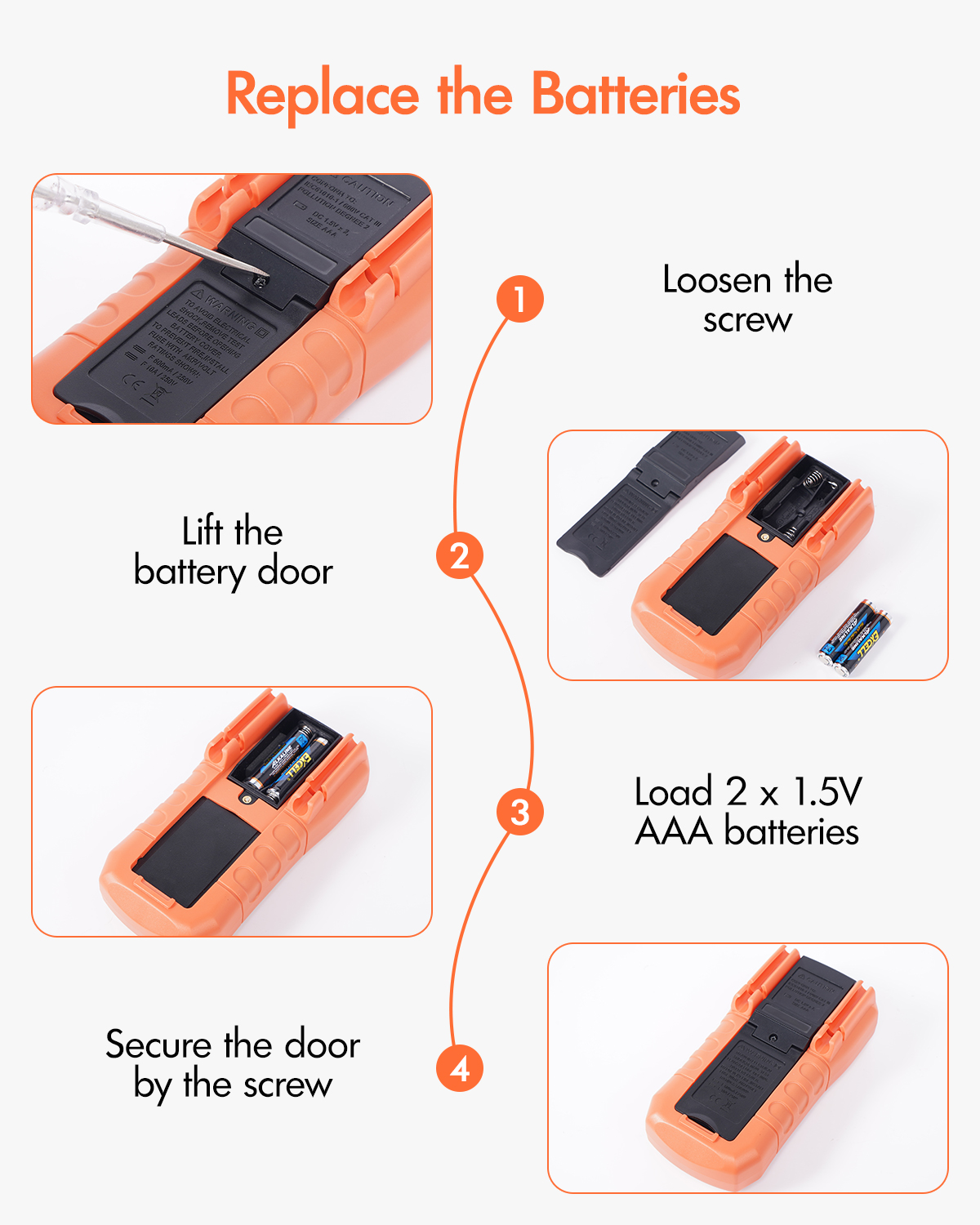

1    Q   What battery?

A    2 AAA batteries, you need to install them before using the multimeter.

2    Q    Does it have 1 or 2 or no fuses?

A    Built-in Double Fuse. Overload Protection on all ranges.

3    Q    I need an ohm meter with less than 10 ma output in 100 ohm range. Will   this fit the bill?

    This meter will work well, the maximum current mine put out is   .130mA(130uA). Also, this will be good for testing solid state electronics,   as it uses about .22V for resistance measurement.

4    Q    Is this to check car battery?

A    Yes you can use it for that. Set it to DC volts.

5    Q    What's the resistance range accurracy?

A    The resistance range are: 200.0Ω, 2.000KΩ,20.00KΩ, 200.0KΩ ,   2.000MΩ.20.00MΩ.
